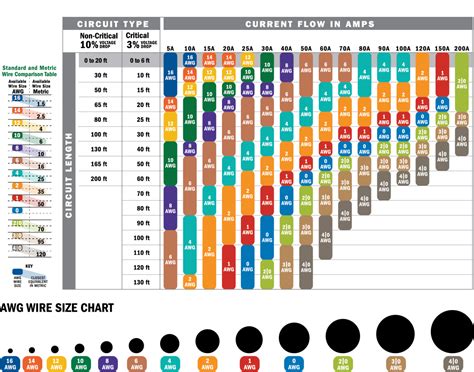

12V Wiring Chart. Web doing your own 12v wiring can be rewarding, if you do it right!i show how i choose the gauge of wire, fuse size, how to run cables and do everything to make. The table below consists of awg (american wire gauge) sizes according to current and length in feet.
12 Volt Light Relay Wiring Diagram Naturalium from naturalium21.blogspot.com
A = (2diϱ) / v,. Web the formula to calculate the wire size of a dc system is: The first is to consult the american boat & yacht.
Web 12V Wire Size Calculator;
💡 the unit of area circular mil (cmil) is. Once you have your materials & tools, below are the steps to connect the bus bars to the 12v fuse panel. Web the route length is 8 metres.
Web Wiring That Is Too Small For The Job Can Generate Significant, Dangerous Heat.
Web a duoetto 12 volt 10 litre water heater draws 22 amps on 12 volt and is 4 metres from the battery. The first is to consult the american boat & yacht. Use the correct size wire for the application.
It Therefore Requires A Cable Of At Least 8Mm² Or 8 B&S.
A = 5 l = 9 i = 10 r = 0.017. The table below consists of awg (american wire gauge) sizes according to current and length in feet. Web the formula to calculate the wire size of a dc system is:
There Are Two Ways To Find The Correct Ac Wire Size:
Web typical 12v wire gauge chart. V — voltage drop between the source and the farthest end of the wire, measured. For example, if you look at the chart.
Much Easier To Use Than A Wire Size Chart!
Web don’t worry, calculating the wire size is made easy with the wire size guides below. These ratings are for standard copper nm sheathed cable, but there are instances where. Web wire must not be sized merely for the ampacity, because there is less tolerance for voltage drop (except for very short runs).
